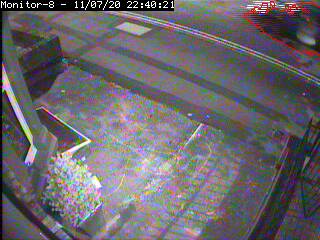

I seem to have an interlace issue as shown on the picture below. After reading some of the comments I changed resolution to 320x240 PAL but the problem is still there. Have tried to play with different values for CAPTURES_PER_FRAME as suggested in one of the posts but still no success.
I am using 8 channel BT878a DVR card with a 1/3inch Colour Super HAD camera.
Help.
Another question is it possible not to have the red line on the moving object?
Interlace issues even with 320x240
-
blazingice3
- Posts: 3
- Joined: Mon Jun 20, 2011 9:46 am
Interlace issues even with 320x240
- Attachments
-
- 011-analyse.jpg (18.45 KiB) Viewed 1837 times
-
zoneminder
- Site Admin
- Posts: 5215
- Joined: Wed Jul 09, 2003 2:07 pm
- Location: Bristol, UK
- Contact:
Re: Interlace issues even with 320x240
You don't say what version you are using, but if it's 1.24.4 or later look at Options->Config->V4L2_CAPTURE_FIELDS and Options->Config->CREATE_ANALYSIS_IMAGES.
Phil
