RGB Artifacts on Image

[mikerm]

I'm hoping someone will be able to take some time and help me out. It's a bit of a weird set up, and using unsupported hardware, but I'm so close to getting to work correctly, I think it's just a simple thing that I am missing.

I have a Hauppage HVR-1800, a GE cheapo GE-435234 wireless camera with composite out, the latest Ubuntu, and the latest ZoneMinder.

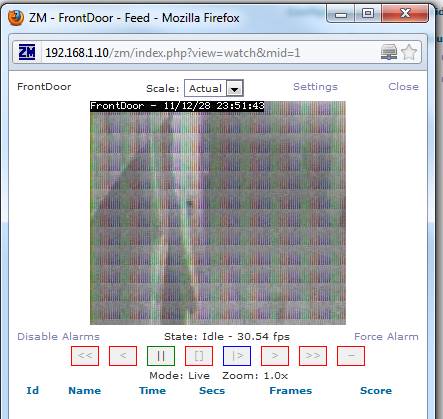

Now, I get a picture, but it has RGB artifacts on it in the form of vertical lines. I have tried so many combinations of things with no results that I don't know which way is up.

LSPCI: 05:00.0 Multimedia video controller: Conexant Systems, Inc. CX23887/8 PCIe Broadcast Audio and Video Decoder with 3D Comb (rev 0f)

v4l2-ctl --all:

Code: Select all

 Driver Info (not using libv4l2):
        Driver name   : cx23885
        Card type     : Hauppauge WinTV-HVR1800
        Bus info      : PCIe:0000:05:00.0
        Driver version: 0.0.2
        Capabilities  : 0x05010011
                Video Capture
                VBI Capture
                Tuner
                Read/Write
                Streaming
Format Video Capture:
        Width/Height  : 320/240
        Pixel Format  : 'BGR3'
        Field         : Interlaced
        Bytes per Line: 960
        Size Image    : 230400
        Colorspace    : Unknown (00000000)
Format VBI Capture:
        Sampling Rate   : 28636363 Hz
        Offset          : 0 samples (0 secs after leading edge)
        Samples per Line: 0
        Sample Format   :
        Start 1st Field : 10
        Count 1st Field : 0
        Start 2nd Field : 273
        Count 2nd Field : 0
Video input : 1 (Composite1: ok)
Frequency: 6400 (400.000000 MHz)
Video Standard = 0x00001000
        NTSC-M
Streaming Parameters Video Capture:
        Frames per second: 29.970 (30000/1001)
        Read buffers     : 0
Tuner:
        Name                 : Television
        Capabilities         : 62.5 kHz multi-standard
        Frequency range      : 0.0 MHz - 268435455.9 MHz
        Signal strength/AFC  : 100%/0
        Current audio mode   : mono
        Available subchannels:

I current have the monitor as BGR24, 256x224 resolution (the only one that seems to work), NTSC, and 29.97 max fps. Anyone have any ideas?
