Strange alarm frame

[marcolino7]

Hi,
I have 6 IP camera configured in Mocord mode.
on each camera I have some zone Inclusive and Preclusive.

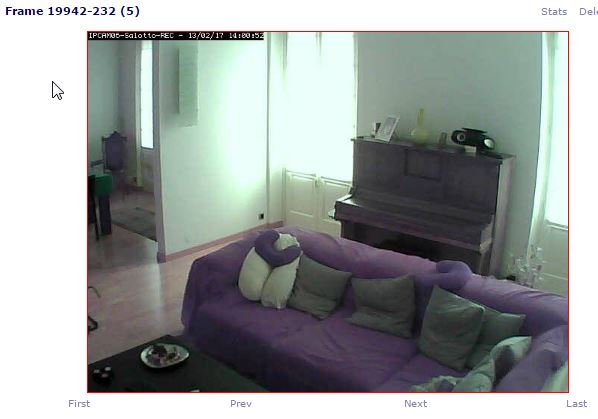

Sometime on 2 specific camera I got some fast alarm frame (1 second) and if I open the frame, I get a complete red square in the frame, but no specific motion. Here is an example:

Frame

2017-02-13 14_57_02-ZM - Frame - 19942 - 232.jpg (29.05 KiB) Viewed 1583 times

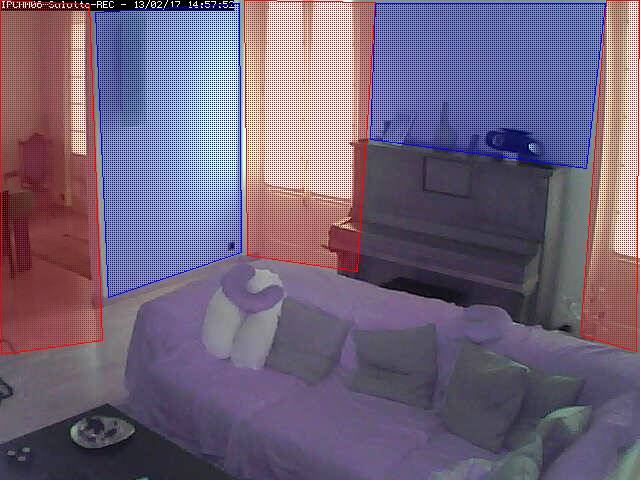

Here is how my zone is configured:

Zones

2017-02-13 14_57_58-ZM - Zones.jpg (70.23 KiB) Viewed 1583 times

How can i remove this behavior if is possible?

Many Thanks

[chevelle67]

Based on my limited experience, with two types of cameras first one was an IP CMOS, and my latest using this now analog CCD type and capture card, and I got a lot of noise in the first one IP CMOS and got a ton of false alarms some had those red perimeter outlines. With my latest CCD camera, I traded a bit of less picture quality for zero false alarms and I am liking this trade off for my situation using MODECT.

When I change my camera settings like the HUE, Color ect, I will get this red outline so I am thinking maybe some CMOS/IP cameras may be causing your issue it did for me. Maybe this is part true my experience is limited and I am still experimenting myself but I am happy with my latest setup.
